Koso Globe Valves
In
severe services of high temperature and high differential pres-sure,
KOSO's multi-stage trim (Pat.) promises accurate control and long life,
free from cavitation erosion and noise problems, whether the fluid is
compressive or non-compressive.
This Series is
multi-ad-vantageous in that its improved performance and durabitity
allows maintenance cost reduction and system simplification. Since such
ancillaries as diffusers and silencers are not necessary, equipment
cost can be reduced too. From 500M, 500D and 500J, depending on the
fluid condition, most suitable model can be selected comparing
functions and prices.
Specifications:
Body type
Body Styles |
500M
Globe / Angle |
500D
Globe / Angle |
500J
Globe / Angle |
Body size |
1" to 36"(900A) |
1" to 36"(900A) |
1" to 18"(450A) |
Body rating |
ANSI Class 150 to 4500, JIS10K to 63K |
ANSI Class 150 to 4500, JIS10K to 63K |
ANSI Class 150 to 2500, JIS 10K to 63K |
Fluid temperature |
-196 to +565° (-320F to +1050F) |
Connections |
Flanged (RF, RTJ), Butt Weld, Socket Weld, Integral Flanges (RF, RTJ) |
Body materials |
SCPH2/WCB, SCPH21/WC6, SCPL1/LCB, SCS13A/CF8, SCS14A/CF8M, A105, F11, F22, etc... |
Trim materials |
SUS410/410SS, SUS630/SCS24, SUS316/SCS14A, INCONEL, etc... |
Rangeability |
50:1 to 20:1 |
Flow characteristics |
Linear , Modified Linear , Modified Eq% |
Leakage |
Metal seat |
Rated ANSI Class IV, V or MSS-SP-61 |
Soft seat |
Bubbletight ANSI Class VI |
Trim Levels |
Up to Level 24 |
Up to Level 40 |
Up to Level 8 |

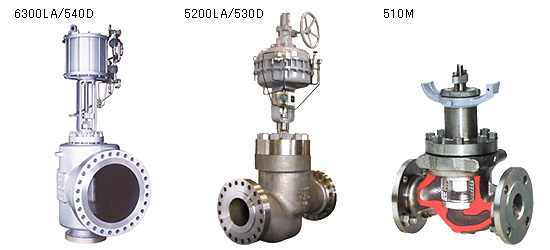

Actuator combination |
5200LA: Pneumatic Diaphragm Actuator
6300LA: Pneumatic Cylinder Actuator
3500LB,3600LB: Solid State Electronic Actuator
3800LA: Microprocessor REXA Actuator |
|
*Source from www.motoyama.com
|
|
|
|
|
|
|
